SCS5250ZSLDFV6 Model technical parameters | |||
Name: | SCS5250ZSLDFV6 | Exterior size(mm): | 9150×2550×3750,3995 |
Chassis: | DFV1253GP6DJ1 | Container size(mm): | 6000,7000×2480,2500×2150,2250 |
Total weight :(kg) | 25000 | Approach angle/ Departure angle(° ) | 19/9,19/13,19/12 |
Payload:(kg) | 15055,15120,14105,14170 | Front suspension/rear suspension(mm): | 1440/3015,1440/2115,1500/2955,1500/2055 |
Kerb Mass:(kg) | 9750,10700(Kg) | Max Speed(km/h): | 89 |
Chassis parameters | |||
Chassis: | DFV1253GP6DJ1 | Axle weight: | 7000/7000/11000 |
Number of axles: | 3 | Fuel Type: | Diesel fuel |
Wheelbase(mm): | 1995+2700,1995+3600,1995+4100,1995+5250,1995+5450 | Fronttread(mm): | 1910/1910,1940/1940,1965/1965,2005/2005 |
Max people in cab: | 3,2 | Rear tread(mm): | 1860 |
Number of tires: | 8 | Number of spring axle: | 9/9/10+8,10/10/10+8,10/10/11+8,3/3/4+3 |
Tire Type: | 11.00R20 18PR,295/80R22.5 18PR | ||
introduction: | 该车主要用于饲料的运输,主要专用装置是饲料仓和上下料的绞龙机构,卸料方式链条传动卸料.侧、后防护材料为Q235B,侧防护与车架螺栓连接,后防护与车架焊接连接,后部防护装置断面尺寸(宽×高)50×120(mm),后部防护离地高度:470mm.选装驾驶室外观,选装驾驶室遮阳板及侧围扰流板.该车型可选装ETC装置.安装带有卫星定位功能的行驶记录仪.ABS型号为3631010-C2000,生产厂为东科克诺尔商用车制动系统(十堰)有限公司.发动机D4.5NS6B220,B6.2NS6B245,B6.2NS6B260,D6.7NS6B290,D6.7NS6B320对应油耗值均为30.5L/100km. |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
D4.5NS6B220 B6.2NS6B245 B6.2NS6B260 D6.7NS6B290 D6.7NS6B320 |
东风康明斯发动机有限公司 东风康明斯发动机有限公司 东风康明斯发动机有限公司 东风康明斯发动机有限公司 东风康明斯发动机有限公司 |
4500 6200 6200 6700 6700 |
162/220 180/244 191/259 213/289 231/314 |
other parameters |
Introduction: |

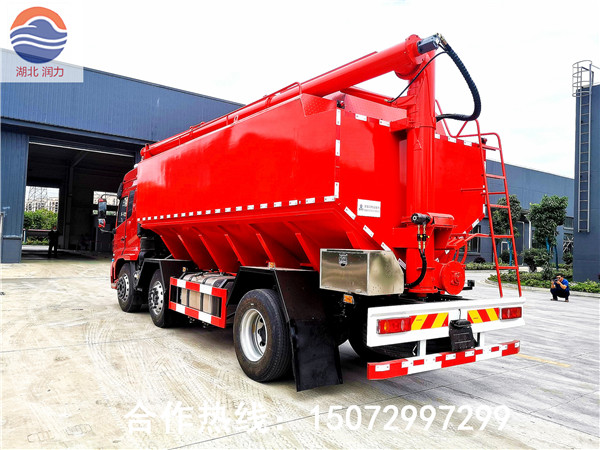

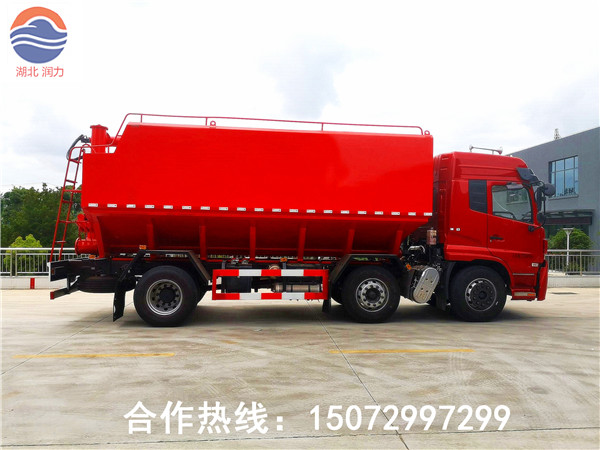

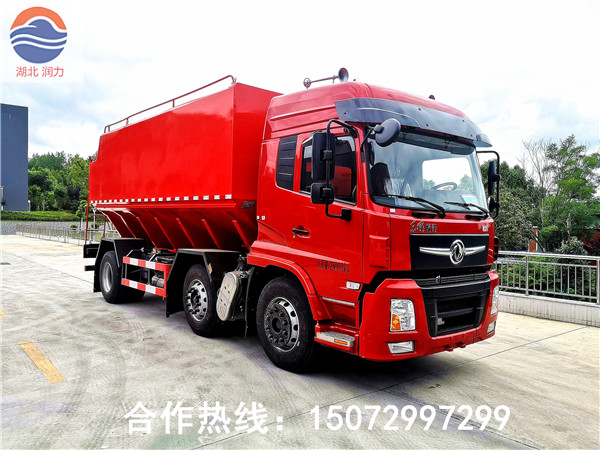

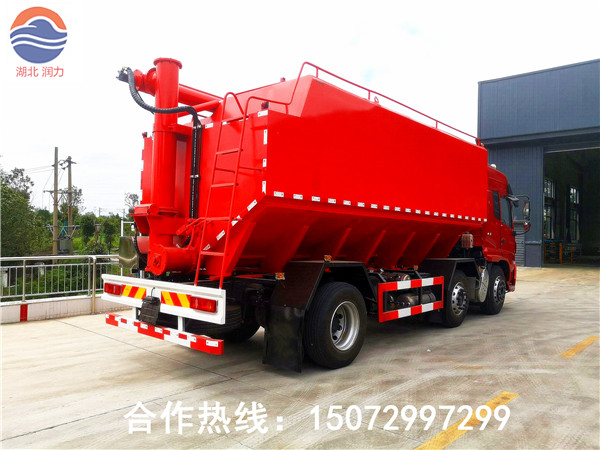

more Picture: |
※ Need more information or pictures?please contact us and we will provide best service!。 |
